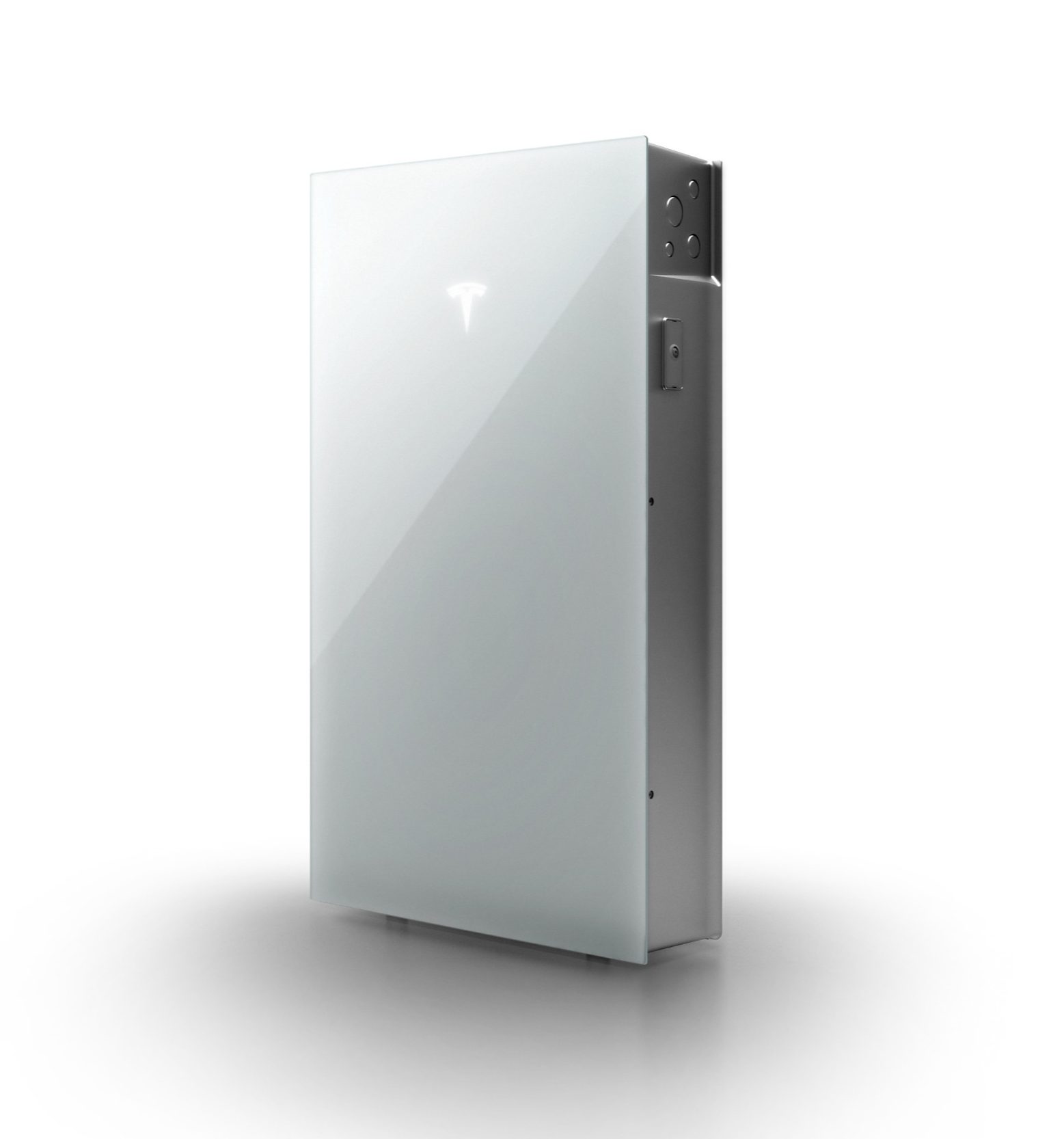

The Tesla Powerwall 3 is one of the most advanced home battery systems available today. It stores excess solar energy during the day and automatically powers your home during utility outages or when electricity rates are at their highest.
For many California homeowners, Powerwall 3 has become an essential part of a modern solar system.
Powerwall 3 is designed to keep your home running during a power outage.
One of its biggest advantages is its ability to deliver up to 185 LRA (Locked Rotor Amps), allowing it to start most 5-ton central air conditioning systems without requiring soft starters or multiple batteries.
With 11.5 kW of continuous output power, it can operate many household appliances simultaneously, making true whole-home backup possible for many homes.
Many homeowners assume that whole-home backup requires rewiring their electrical panel or installing a separate critical loads panel.
In many cases, that's no longer necessary.
Tesla's Backup Switch (meter collar) installs behind the utility meter and automatically disconnects your home from the grid during an outage. This allows the entire electrical panel to remain backed up without extensive rewiring.
Benefits include:
Unlike previous generations, Powerwall 3 includes a built-in hybrid solar inverter, eliminating the need for a separate string inverter on many installations.
This reduces equipment, simplifies installation, and lowers overall system complexity.
The inverter can accept up to 20 kW of DC solar, making it suitable for both medium and large residential solar systems.
One of the biggest improvements in Powerwall 3 is its six independent Maximum Power Point Trackers (MPPTs).
Each MPPT can operate independently, allowing installers to connect up to six separate solar strings. Each string requires as few as two solar panels, making the system extremely flexible.
This provides several advantages:
Instead of forcing multiple roof sections onto the same MPPT, each roof face can operate independently for maximum efficiency.
Powerwall stores excess solar energy during the day and automatically uses it in the evening when utility electricity is most expensive.
Under California's NEM 3.0 program, battery storage has become one of the most effective ways to maximize the value of a solar system and reduce electric bills.

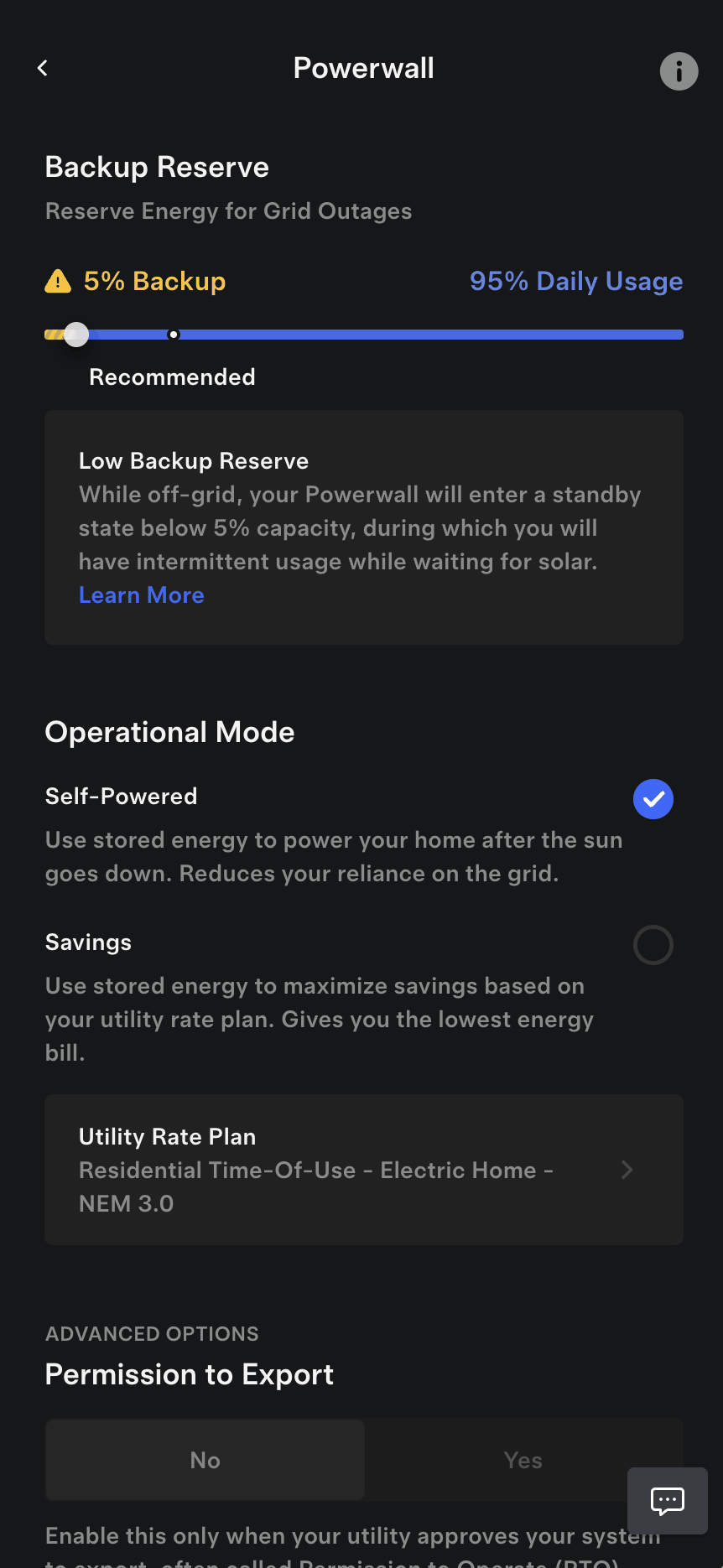

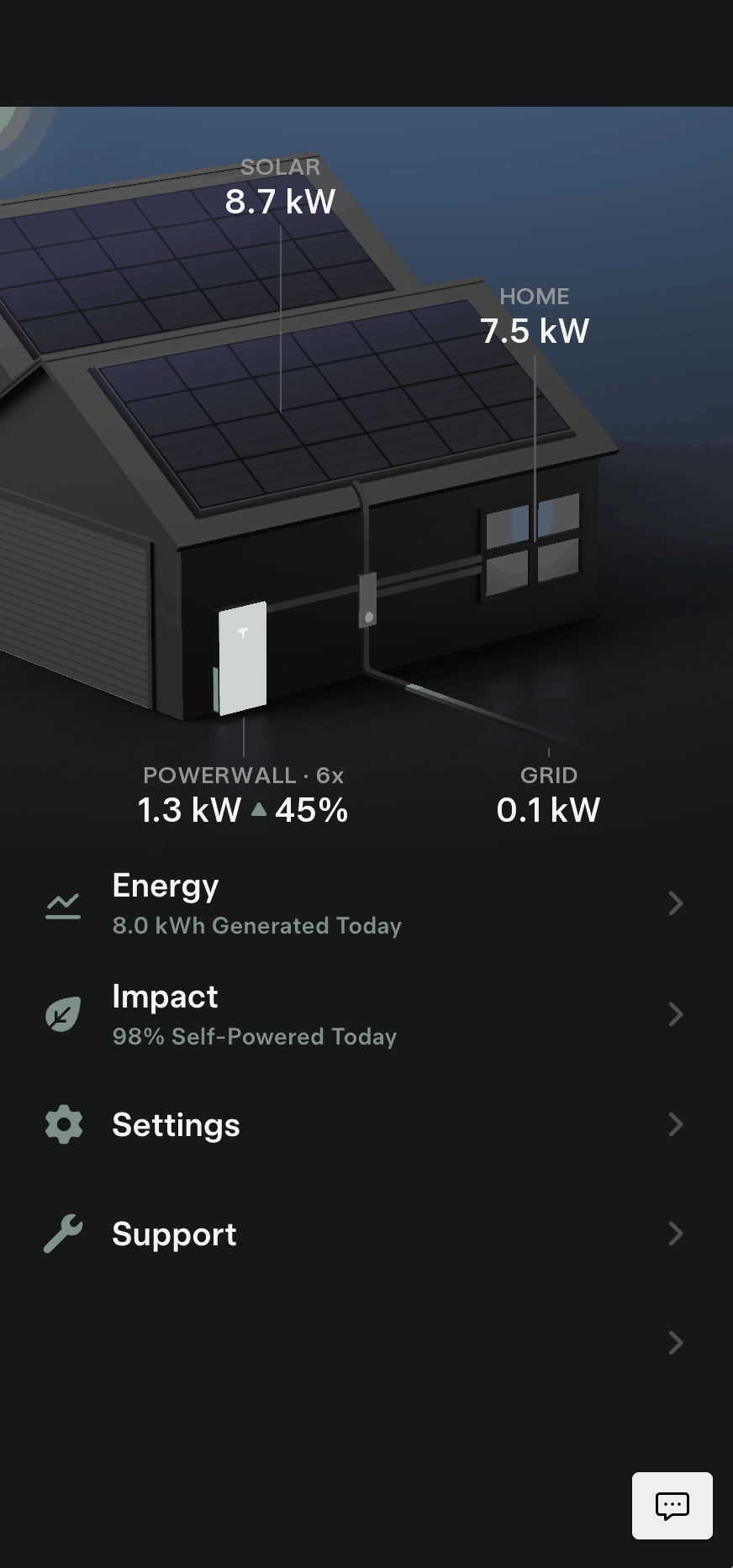

From the Tesla app, you have full information about your system, and you can control Backup Reserve and operational mode, and update it at any time.
Powerwall 3 is an excellent choice if you:
If you're considering a Tesla Powerwall 3, we'd be happy to evaluate your home and recommend the best solution for your energy needs.
We'll evaluate your home and recommend the right Powerwall setup — no pressure, no obligation.
